Product Details:
|
| Name: | Stainless Steel Round Square Pipe | Thickness: | 0.20-3.00mm Or SCH 5S/10S/20/30/40S/STD/60S/XS/XXS |
|---|---|---|---|
| Grade: | 300 Series | Standard: | ASTM DIN EN JIS SUS GB BS AiSi |
| Surface: | Polishing,annealing,pickling,bright | Tolerance: | ±1% |
| High Light: | Inox SS 304 Pipe,Polished SS 304 Tubes Pipe,SS 304 Tubes Pipe 3.00mm |
||
Description:
|
Product Name
|

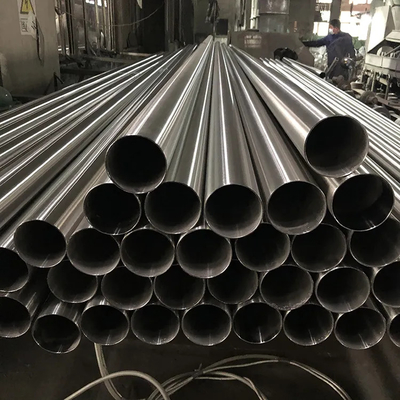

Stainless Steel Pipe
|
|
Grade
|
201,202,304,309,310,310S,316,316L,410, 420,430,904L
|
|
Size
|
Wall thickness:1mm-150mm(SCH10-XXS)
Outer diameter:4mm*4mm-800mm*800mm
|
|
Surface
|
No.1/2B/BA/Hairline/Polished
|
|
Application
|
201 material is mostly used for decoration application, such as handrail, curtain pipe and so on;
304 material is mostly used for food industry, medical instruments, household application, construction and so on;
316 has good performance on Corrosion resistance, it is most used in high corrosion environment, such as Marine industry;
310S has good performance on high temperature,
it can withstand even1400℃,it generally used in high temperature environment, such as boiler industry |
|
Delivery time
|
Regular size delivery 5-7 days
|
|
Quality Control
|
The Original MTC will send alone with goods together,
Support third-party detection. |
| Chemical Composition | |||||||
| Grade | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ni | Cr |
| 201 | 0.15 | 1.00 | 5.50-7.50 | 0.5 | 0.03 | 3.50-5.50 | 16.00-18.00 |
| 202 | 0.15 | 1.00 | 7.50-10.00 | 0.5 | 0.03 | 4.00-6.00 | 17.00-19.00 |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
| 309 | 0.20 | 1.00 | 2.00 | 0.04 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 309S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310 | 0.25 | 1.00 | 2.00 | 0.04 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 310S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316Ti | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 410 | 0.15 | 1.00 | 1.00 | 0.04 | 0.03 | 0.60 | 11.50-13.50 |
| 430 | 0.12 | 0.12 | 1.00 | 0.04 | 0.03 | 0.60 | 16.00-18.00 |
Quality test:
Package:
Application:
About Us:
workshop:
FAQ:
Q: Does the factory have the goods in stock?
A: You can leave your e-mail and our sales will contact you. You can consult our sales. If you have any special requirements on the aluminium products. We can customize for you.
Q: How long can I receive my goods?
A: It depends on the products you ordered. Generally, it needs 3-15 days.
We have 3200 workers to manufacture aluminium products. We have complete production lines for meeting your needs of products quality and production speed to make sure that our products can get to you faster.
A 4 inches (100 mm) Schedule 80 pipe has an outside diameter of 4.500 inches ( 114.30 mm), a wall thickness of 0.337 inches (8.56 mm), giving a bore of 3.826 inches (97.18 mm)
